4000PCS/H Double Nozzles Automatic Tube Cutting Sealing Machine

Name: 4000PCSH Double Nozzles Automatic Tube Cutting Sealing Machine
Brand: AILUSI
Price: 4200 USD

China 4000PCS/H Double Nozzles Automatic Tube Cutting Sealing Machine wholesale

Brand Name : AILUSI

Certification : CE

Place of Origin : JIANGSU

MOQ : 1

Price : 4200USD

Payment Terms : D/A, L/C, T/T

Supply Ability : 10

Delivery Time : 35

Automatic grade : Semi-Automatic

Type : Filling Machine,Sealing Machine

Application : Chemical

After-sales service provided : Video technical support

Packaging material : Plastic,Metal,plastic tube filling and sealing machine

Capacity : 1800-4000PCS/H

Material : SUS316L/SUS304 stainless steel

Function : filling and sealing

Product name : Semi Auto ultrasonic Cosmetic Tube Filling Sealing Machine

Voltage : 380V/50Hz

Filling Volume : 10-300ml

Contact Now

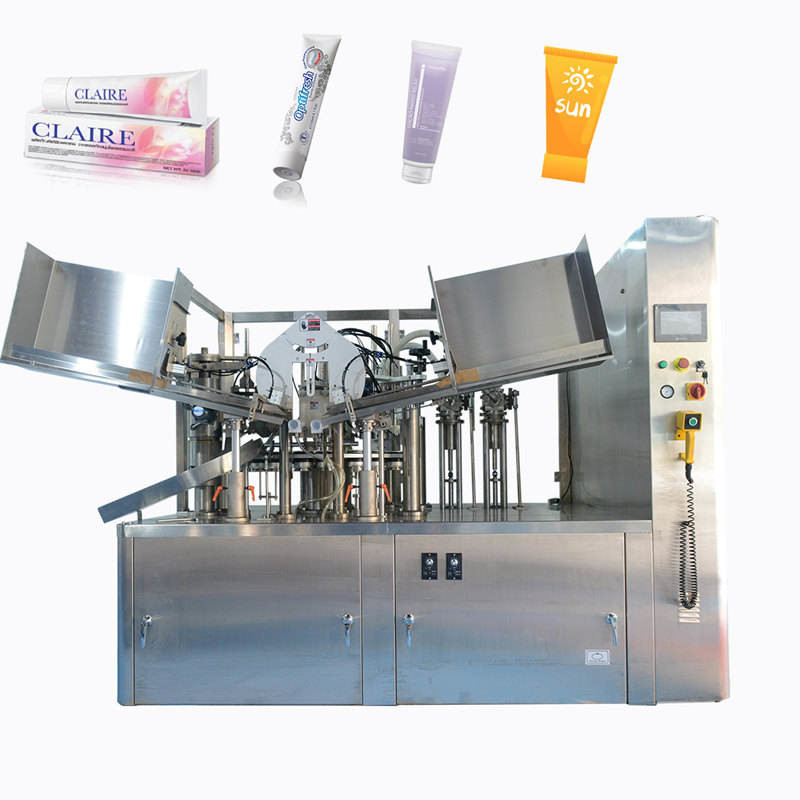

Double Nozzles High Speed Automatic Tube Cutting Sealing Machine, Filler Sealer for Tubes

Product Application

AFS-AL Automatic plastic tube filler and sealer is designed for plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries. Its operating principle is to put the pipes which is in the feeder hopper into the first service position filling model individually, to invert with rotating disk, to test nomenclature plate in pipe when inverting to the second , to fill with nitrogen gas into pipe in the third, to fill with desired substance in the fourth, then to fix the heating, folding, jamming, number printing, cooling, slivers trimming etc service position, to export the finished products when inverting to the last service position so the twelfth. Every pipe should take such series process to filling, sealing to completion.

4000PCS/H Double Nozzles Automatic Tube Cutting Sealing Machine

Lead Time:20 DAYS
Product Orgin:China
Shipping Port:Guangzhou Port
Price:$12000/Set
MOQ:1
goods stock:50

Product Detail

4000PCS/H Double Nozzles Automatic Tube Cutting Sealing Machine

Item	Description(FULL AUTO)	Description(SEMI AUTO)	Remark
Tube material	Plastic tube, Multiple tube	Plastic tube, Multiple tube
Tube diameter	φ13-φ50	Φ16-Φ50mm
Tube length	50-250	50-250	customizable
Filling volume	10-300ml/pcs	10-250ml	adjustable
Product capacity(pcs/h)	1800-4000 2 Nozzles( 3000-8000)	600-1500
Working pressure	0.55-0.65Mpa	0.5---0.6MPa
Motor power	2kw (380V/220V 50Hz)	220V/50Hz or 380V/60Hz
Heat sealing power	3kw	3kw	LEISTER
Working Position	12	8	One size one mold
dimension	L2620×W1236×H1980	1100×790×1500mm
weight	1100KG	400kg

Main Features

1) Automatic tube loader-Automatic print registration-Tube orientation checking-Fiiling-Inner Heating-Sealing and Dater Printing-Cutting-Discharge
2) Adopting advanced world famous brand Mitshubish, Schneider, Omron, Leister erccomponents in pneumatic parts ,electric parts and operation parts.
3) High Standard quality control and safety protection.

4) Mechanical transmission device provide stable and easy operation.

5) Could match cartoning machine and film packing machine together.

Our Servers:

We provide Turn-key project service to customer.

1. Factory Layout design;

2. Factory Decoration based on GMP standard;

3. Formula of products;

4. Raw material etc;

5. Machine design, whole production line from A to Z;

6. Shipping service, FOB, CFR, CIF etc;

7. Installation service. Training service, Maintenance service. 4000PCS/H Double Nozzles Automatic Tube Cutting Sealing Machine
